Lecture Room Setup 2.0
In 2025, we finally updated our lecture room sets (aka. “cases”) to a new concept. See Case 2.0 for motivation and design decisions.
Each room setup now consist of two TRANSflex road cases with rack modules for key components.

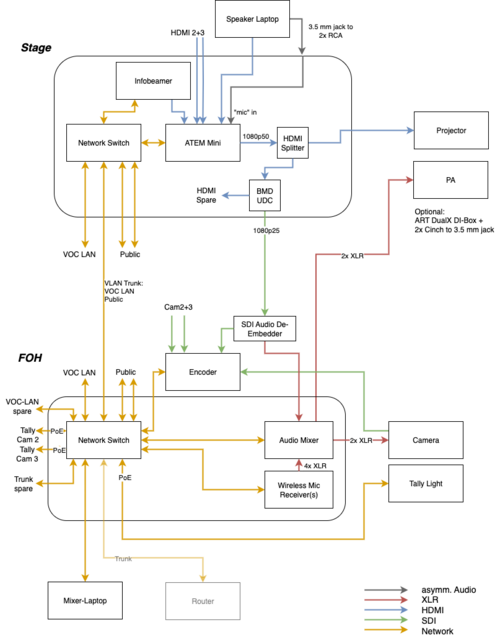

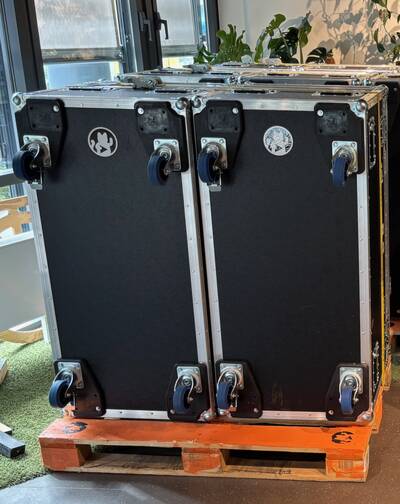

Both road cases fit on a euro pallet when tipped on their short side. So during transport each lecture room will occupy 120×80 cm (height approx. 140 cm) and during operation 2x 120x60cm are needed (height approx. 80cm).
Usage
The Case 2.0 is an evolution of the “standard setup” used for common events which happen in universities or other rooms prepared for presentations.
- Take the lectern module to the stage and place it somewhere convenient
- items: lectern module, Schuko to TRUE1 cable, 2 HDMI cables, speaker adapters
- Take the FOH and encoder modules to the FOH position
- items: modules, Schuko to C13 cable, Schuko to TRUE1 cable, ethernet and SDI (FOH to encoder)
- use a long power cable if needed
- Connect lectern and FOH module with long ethernet and SDI cables
- Place camera near FOH
- Place a 3-way power strip at the tripod, connect to power strip at FOH module
- Place camera on tripod and connect power
- Attach preview monitor to camera
- Connect camera to encoder with an SDI cable
- Connect ethernet to a VOC VLAN or public network using the TP-link router
Case x.1
- tripod and camera
- cable bridges (defender office) and cable mats
- cables: Power, XLR, SDI, HDMI
- accessory boxes
Inventory (from left to right):
- power compartment:
- Schuko extension cords: 2x? 3m, 1x 10m, 1x 20m
- power strips: 3x 3-way, 5x 6-way (2m each)
- Schuko to TRUE1: 3x 3m
- Schuko to C13: 2x ~2m
- accessory compartment:
- 30x40cm euro crate tower at the back:
- intercom crate (currently only a placeholder)
- ethernet crate: 3x 0.5m, 5x 1.0m, 5x 1.5m
- audio and DI crate: DI boxes and cables (TODO: detailed inventory)
- sorting box with small adapters
- 30x40cm euro crate tower at the front:
- lucky cat and battery crate: 16 (or 20??) rechargeable AA batteries, battery charger, lucky cat, 2 AA Alkaline Batteries
- tape crate: 3 rolls of gaffer's tape (black, white, yellow/black striped)
- embedder and converter crate: BMD UpDownCross, BMD Micro Converter BiDirectional, BMD Audio to SDI, Lumantek Ez-SHV+ (SDI to HDMI with display), 4x 6.3mm jack to XLR (m), 2x 6.3mm jack to XLR (f)
- camera compartment (60x40cm euro crate stack):
- tally light crate (currently only a placeholder)
- mixer laptop crate: Laptop, power supply, mouse
- camera crate: camera (+ power supply, battery and charger), preview monitor (+ power supply and magic arm), 4x 128 GB SD-card, SD-card reader
- XLR compartment:
- XLR: 2x 5m, 6x 10m, 4x 20m
- DT770 pro headphones
- video cable compartment:
- SDI: 2x 1m, 4x 2m, 2x 10m, 1x 20m
- HDMI: 3x 2m, 3x 3m, 2x 5m, 1x 10m
Case x.2
Contains the modules as well as microphones, minion, office equipment, c3lingo console and long ethernet cables. TODO: Picture
Inventory (from left to right):
- FOH module (bottom to the left)
- 60x40cm euro crate stack:
- c3lingo crate (currently only a placeholder)
- office crate: Mikrotik switch (+ power supply), 5x 3m ethernet
- minion crate: Minion, power supply
- microphone crate(s): 2x handheld microphone, 2x beltpack, 2x headset
- ethernet compartment:
- orange ethernet cables: 2x 10m, 2x 20m
- Lectern module (bottom to the left)
- Encoder module (bottom to the left)
Assembly
FOH Module
Custom builds:
- 2x 0.75m cable 6.3mm Jack (stereo) → angled XLR (m): For Audio De-Embedder
- 6x 0.5m cable 6.3mm Jack (stereo) → d-norm XLR (m): For additional CQ18-T outputs
Steps:
- Put cage nuts in rack rails:
- 4U on the back
- 4U on the front
- 3U on the top at (from the back side) + 2 nuts per side for CQ-18T rack mount
- Mount PoE-Switch and SDI Audio De-Embedder on short rack shelf
- Modify d-norm rack panel to fit TRUE1 connector (add additional hole)
- Connect power distribution panel to TRUE1 connector (solder or crimp connectors)
- Place remaining items on back and front
- Connect ethernet and SDI cables
- Connect 6.3mm jack cables to audio outputs 1 and 2 of the SDI Audio De-Embedder
- Connect 1m XLR (f) to angled XLR (m) cables to the 4 audio outputs of the wireless receiver
- Place audio mixer on the top, connect 4 microphone and 2 SDI channels to inputs 1-6
- Connect 6.3mm jacks (from the d-norm XLR outputs) to aux channels 1-6 of the audio mxier
- Screw down remaining rack panels
Items:
- TODO
Lectern Module
Custom builds:
- Solder 2 Cinch d-norm sockets to the ends of an 1.5m 3.5mm jack → 2x Cinch cable (for ATEM audio input)
- TODO: Build 12V power distribution
Steps:
- Preparation:
- Put 16 cage nuts in the rack rails (2 rack units at the front and back)
- Mount ethernet switch on rack shelf (double-sided tape) leaving 1 cm to the left side
- Connect ethernet cables (to I/O panel) and dress them into a wire harness (TODO: upload picture):
- 3x 1.0m ethernet running in 1cm gap between switch and rack tray wall
- TODO: Mount power supply on rack tray and connect to ethernet switch
- Remove rack drawer from its rails and put devices on it using double-sided tape:
- Mount ATEM Mini centered on right at the front edge
- Mount Raspberry Pi on the left so that HDMI still goes past the ATEM mini
- Mount Up-Down-Cross on right side with SDI pointing to the front and bottom side up (this way the DIP switches will still be accessible)
- Place HDMI-Splitter at the back in a way that cables run fine
- Connect cables running on the sliding tray:
- 0.5m HDMI from Raspberry Pi to ATEM Mini, Input 4
- 0.5m HDMI from ATEM Mini Output to HDMI splitter
- 0.5m HDMI from HDMI splitter to Up-Down-Cross
-
- 3x 1.5m HDMI to ATEM inputs 1-3
- 1x 1.5m HDMI from HDMI splitter
- 1x 1.5m Ethernet from Raspberry Pi
- 1x 1.5m Ethernet from ATEM Mini
- 1x 1.0m SDI from Up-Down-Cross
- 1x 1.5m 3.5mm Jack to Cinch (d-norm, see above)
- TODO: Power (don't connect to power supply yet)
- Connect wire harness to I/O d-norm panel (but don't connect ethernet to the switch yet)
- Assembly:
- Adjust the length of the rack drawer rails and mount them in the top rack unit
- Slide in the drawer:
- connect with the rails
- grab ethernet cables (coming from drawer) and let them hang out the back of the module
- place I/O panel in front of the rack module (don't screw down yet!)
- Slide in the rack tray with the switch:
- screw down at lower rack unit at the back of the rack module
- make sure, that the wire harness coming from the rack drawer is fully at the right side of the switch (when looking from the back of the rack module)
- connect 12V power cable from wire harness to power supply
- Connect I/O panel
- connect 220V-side of power supply to TRUE1 socket of the I/O panel
- connect the 3 ethernet cables to their respective sockets
- screw down I/O panel
